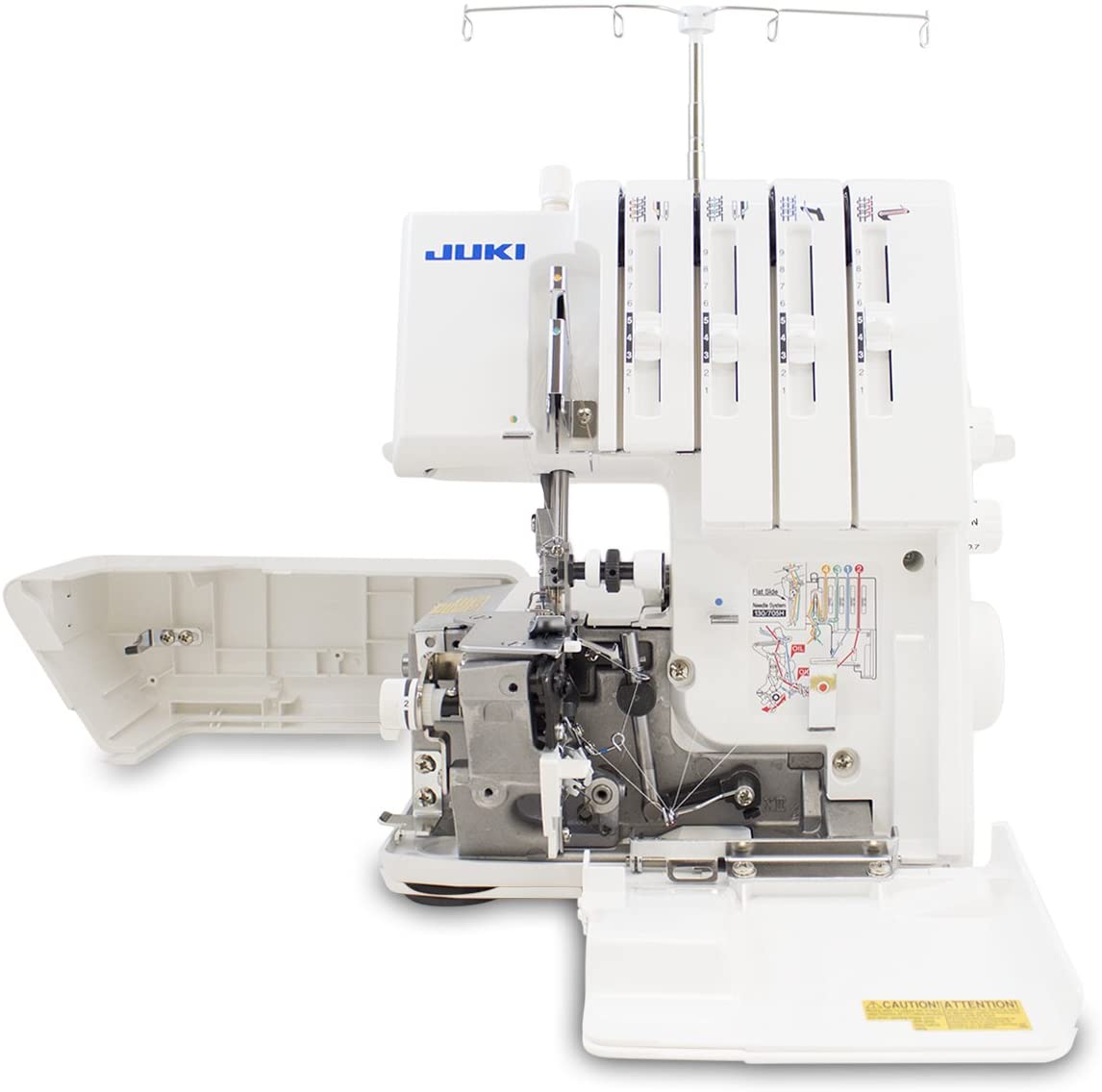

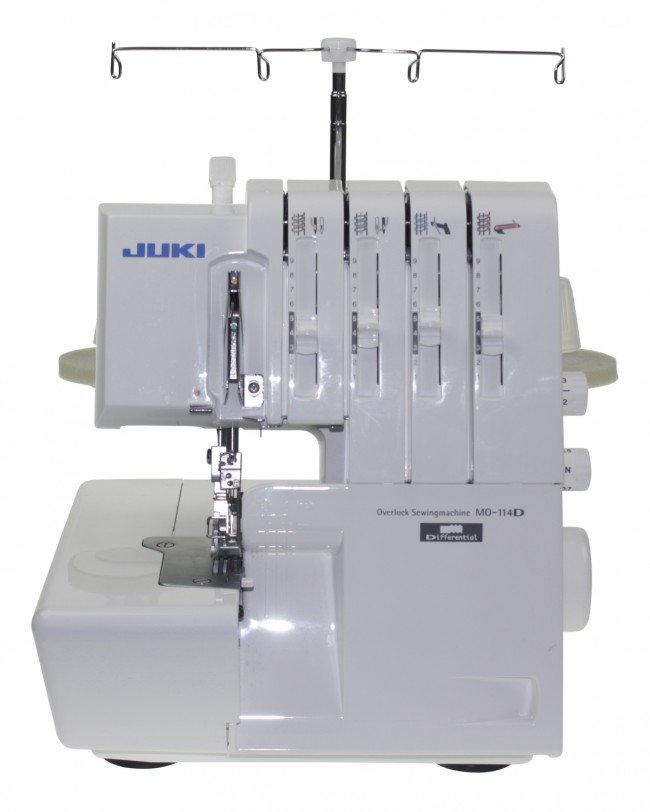

Juki MO-114D 2/3/4 Thread Overlock Serger

NEW LAY-IN TYPE THREAD TENSION SLOTS

Lay-in type thread tension slots throughout the machine make threading is easy and efficient. No wrapping, just follow the color coded thread path.

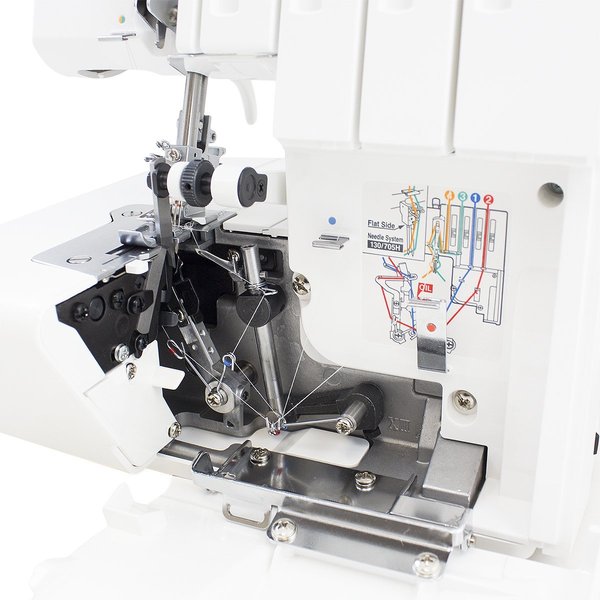

LOWER LOOPER THREADER

The lower looper threader allows for easy threading in seconds. Just slide the thread into the slot and snap the looper into place.

AUTOMATIC ROLLED HEMMING

Automatic rolled hemming can be created quickly and easily with built-in fingertip control. There is no need to change the throat plate or foot.

CUTTING WIDTH

Cutting width can be adjusted quickly for perfect seams and rolled edges.

ADJSUTABLE STITCH LENGTH

Adjust stitch length by simply turning dial, located on the exterior right hand side, within the range of 1 to 4mm.

DIFFERENTIAL FEED

Differential feed is easily controlled and adjusted by a dial located on the exterior right hand side.

Specifications

• Number of threads – 2, 3 or 4 threads
• Needle – Schmetz 130/705H numbers 70, 80 & 90
• Standard overlock with
  • Left needle 5-7mm
  • Riht needle 3-5mm
  • Rolled hem 1.8-2.5mm
• Stitch length – 1-4mm (standard 2.5mm)
• Differential feed – 0.7-2.0 ratio
• Presser foot lift – 5mm-7.5mm
• Sewing speed – max. 1500 stitches per minute
• Weight – 7kg (approx. 15.5lbs)
• Dimensions – 315 W x 290 D x 290mm H (approx. 12.4″ x 11.4″ x 11.4″)

Other Features

• Adjustable presser foot pressure
• Sewing light
• Upper looper converter (optional)

Included Accessories

• Electronic foot control
• Spool caps
• Tweezers
• Cleaning brush / needle inserter
• Nets
• Needle set 130 / 705
• Small screwdriver
• Oiler
• Accessory bag
• Dust cover
