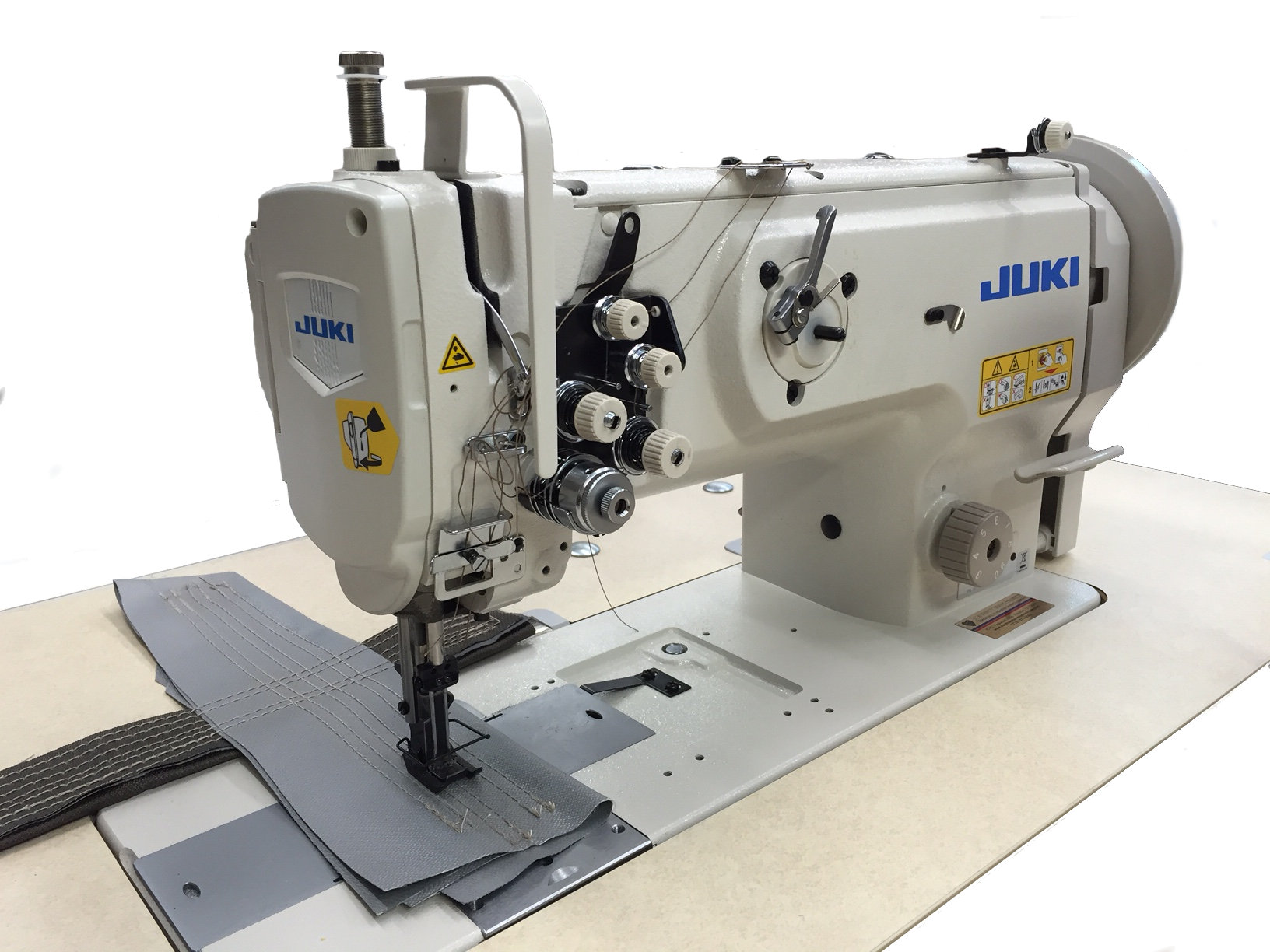

Juki LU-1560N 2-Needle Unison Feed Lockstitch Industrial complete unit.

$3,850.00

Category:

Juki LU-1560N 2 Needle Unison Feed Lockstitch Industrial Machine Unison Feed Walking Foot Lockstitch Industrial Machine – Double-capacity Hook

With its reliable feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.

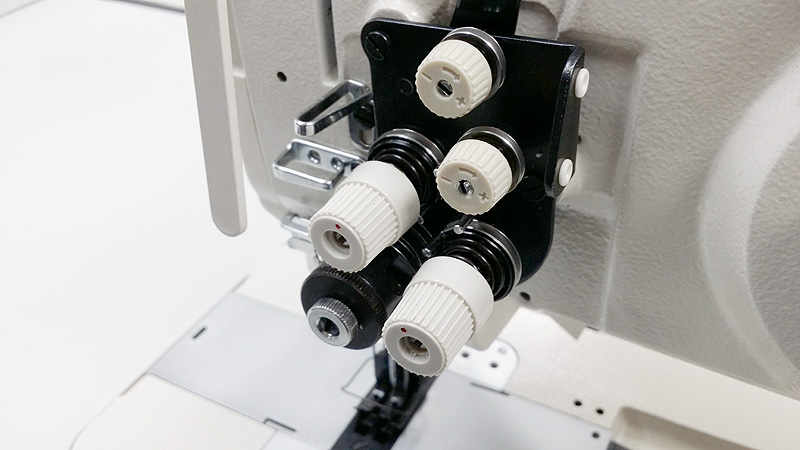

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness. The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm. In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.

This Package includes a Fully Assembled Table and a SERVO Motor.

The motor can be upgraded to an adjustable-speed servo motor for only $79. Simply choose the servo motor upgrade option from the drop down menu during checkout.

High-Speed Performance

The machine delivers increased productivity at sewingspeeds as high as 3,000 Stitches per Minute

Consisting only of a moving knife and counter knife, the simple and well-balanced thread trimming mechanism is capable of cutting thick thread up to without fail.

Automatic Reverse Feed

With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.

Machine Specifications



Max. Sewing Speed 2,500 Stitch per Minute
Max. Stitch Length 9mm (forward / backward)
Needle Bar Stroke 36mm
Lift of the Presser Foot by Hand 9mm
Lift of the Presser Foot by Knee 16mm
Thread Take-Up Slide Type
Amount of Altering Vertical Movement 2.5~6.5mm
Hook Horizontal-Axis Full-Rotary Double-Capacity Hook
Needle (at time of delivery) 135×17 (Nm160) Nm125~Nm180
Thread #30~#5, B46~B138, Nm=60/3~15/3
Pitch Changing Method By Dial
Lubrication Centralized Oil Wick Lubrication (hook:automatic)
Lubricating Oil Juki New Defrix oil No.2 (equivalent to ISO VG32)
Distance from Needle to Machine Arm 264mm
Bed Size 477x178mm
Motor Output 750W
Weight of the Machine Head 36.5kg
