Highlead GC2698-1BN Single Needle Small Cylinder Arm Walking Foot with Large Horizontal Hook table and servo motor included.

$1,995.00

Category:

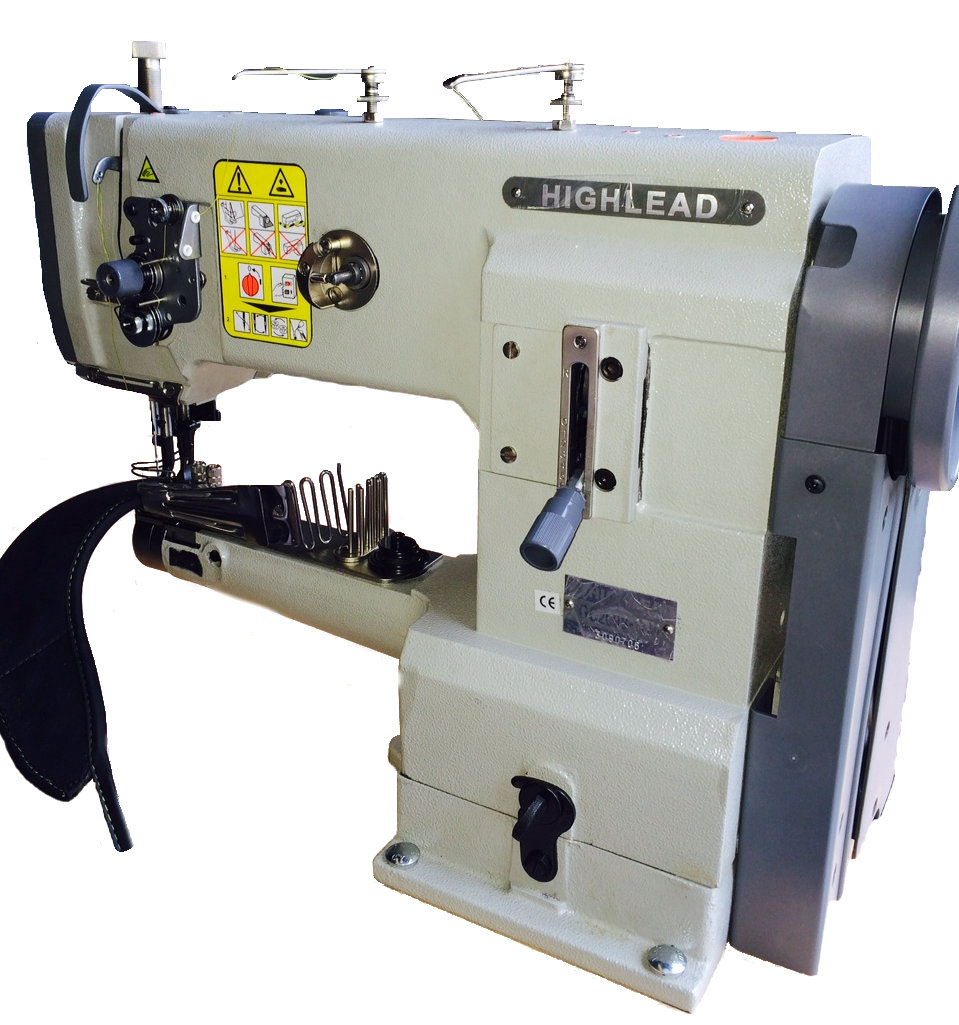

HIGHLEAD GC2698-1BN Single Needle Small Cylinder Arm Walking Foot with Large Horizontal Hook

Introducing the HIGHLEAD GC2698-1B Small Cylinder Arm Lockstitch Sewing Machine with Walking Foot, Synchronous Binder and LARGE HOOK.  This machine uses the exact same feed and binder motion system as the PFAFF 335 and cloned type machines. It employs both needle and compound feed to give positive feeding and uniform stitching on all types of application.   Ideal for use on Leather Goods, PVC, Nylons, Cordura and all difficult to bind workpieces. Small Cylinder Arm design allows binding on tight radius corners.

Using a synchronous motion, the close fitting  binding folder moves backwards and forwards with the feed mechanism to ensure constant accurate sewing of the binding tape. Can be used with Polyester, PVC and Leather Edge Bindings on Shoes, Luggage and  Automotive Parts etc.  Perfect for Binding Household and Light Quilted Goods like Placemats and Oven Gloves.





Model GC2698-1B
Max sewing speed 2400 rpm
Stitch length 0-6 mm
Needle bar stroke 33.4 mm
Thread take-up lever stroke 59.6 mm
Presser foot lift By hand 5 mm
By knee 14 mm
Bed size in diameter 47 mm
Needle size DP x 35LR 14 #-18#
Lubricatoin Manual lubricated
