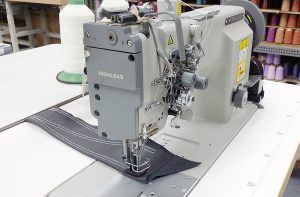

HIGHLEAD GC-20638 Double Needle Split Needle Bar Walking Foot Sewing Machine.


Machine Brand MACHINE BRAND:

HIGHLEAD Sewing Machines

Sewing Machine Model MACHINE MODEL:

GC 20638

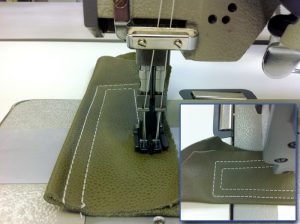

Sewing Machine Description MACHINE DESCRIPTION: The HIGHLEAD GC 20638 is a new machine specially developed for the car seat industry – which is designed with split needle bar to be engaged or disengaged for convenient corner stitching.

This sewing machine also features ball bearing for arm shaft and lower shaft, cog belt driving, plunger oil pump for automatic lubrication.

With compound feeding mechanism, it is available for stitching multi-layer materials of heavy weight, such as leather, foam, plastics, synthetic fabrics, etc.

This sewing machine is high class equipment for stitching car seats, fabric decoration in cars, shoe uppers of leather or synthetic leather, sports equipment, office furniture, soft cushions, trunk, bags, etc.

This machine features BIG bobbins and hooks, reverse lever for easy backtacking, adjustable stitch length dial, and ships complete with table stand and 110 Volt SERVO Motor.

Factory set needle gauge is 8mm.


Techical Specifications TECHNICAL SPECS: Speed, Max. (S.P.M): 2,000
Stitch length: 0-9 mm
Needle bar stroke: 33.4mm
Take up stroke: 74.5mm
Presser foot lift by hand: 7mm
Presser foot lift by knee: 13mm
Hook: Auto Lubricated Large Rotary Hook
Lubrication: Auto Lubricated
Uses Needle 135×17 (DPx17 Sizes 18 to 23)
Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled  if required.

This machine comes standard with a 8 mm Needle Gauge.  However, you can also order this machine with a 9.5mm gauge

The machine set-up includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Thread Stand
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.


Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $3,195.00 – with standard 8mm gauge.
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $195.00

Home / Residential Address = $250.00
