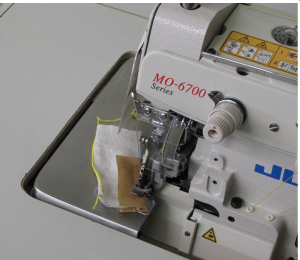

Juki MO-6704S-OA4-150 Purl Stitch 3 Thread High-speed Overlock Industrial Serger.

Name: Juki MO-6704S-OA4-150 Purl Stitch 3 Thread High-speed Overlock Industrial Serger.
SKU: 15612
Availability: InStock

0 out of 5 based on 0 customer ratings

0 Review(s) Add your Review

Available: In stock

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

$1,899.00

Download Catalog

Category: Juki Industrial

High-speed Industrial 3 Thread Overlock Stitch Serger

This advanced overlock machine is easier to use and promises superior cost effectiveness.

The Juki MO-6800S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This advanced overlock machine is easier to use and promises superior cost-effectiveness as well as the responsiveness from light- to heavy-weight materials with a lower applied tension.

THE MACHINE ACHIEVES BEAUTIFULLY FINISHED SEAMS OF IMPROVED QUALITY EVEN WHEN RUN AT A HIGH SPEED.

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

THE MACHINE IS PROVIDED WITH FUNCTIONS WHICH CONTRIBUTE TO EASIER OPERATION.

COMPARE SPECIFICATIONS & FEATURES

FEATURES

MO-6804S

MO-6814S(In Stock)

MO-6816S(In Stock)

MO-6843S

Stitch Type

1-needle overlock

2-needle overlock

Safety stitching

3-needle safety stitching

Stitch style in the U.S.A

504

514

516

N/A

Max Sewing Speed

7,000sti/min

Stitch length

0.6 ~ 3.8 (4.5) mm

Needle gauge (mm)

N/A

2.0

3.0, 5.0

3.0+2.0, 5.0+2.0

Overedging width (mm)

1.5, 4.0

2.0, 3.0, 4.0

4.0, 5.0, 6.0

3.0

Differental Feed Ratio

For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)

Needle bar stroke

24.5mm(60H:27.0mm)

Inclination angle of the needle

20°

Needle bar bushing

Lower bushing method

Needle

DC×27 (excluding some subclass model)

Max. lift of the presser foot

7mm (excluding some subclass model)

Max. presser foot pressure

63.7N (6.5kgf)

Stitch adjusting method

By push-button

Differential-feed adjusting method

By lever (with micro-adjustment)

Weight of the machine head

27kg

Lubrication

Automatic

Lubricating Oil

6JUKI Machine Oil 18 (equivalent to ISO VG18)

JUKI Machine Oil 18 (equivalent to ISO VG18)

Needle Cooler

Provided as standard

Needle Thread Heat Remover

Provided as standard

Micro-lifter

Option

Weight

18.42 lbs

Dimensions

35.05 × 33.98 × 12.3 in

Shopping Cart

Menu

Juki MO-6704S-OA4-150 Purl Stitch 3 Thread High-speed Overlock Industrial Serger.

Description

Includes table and motor
