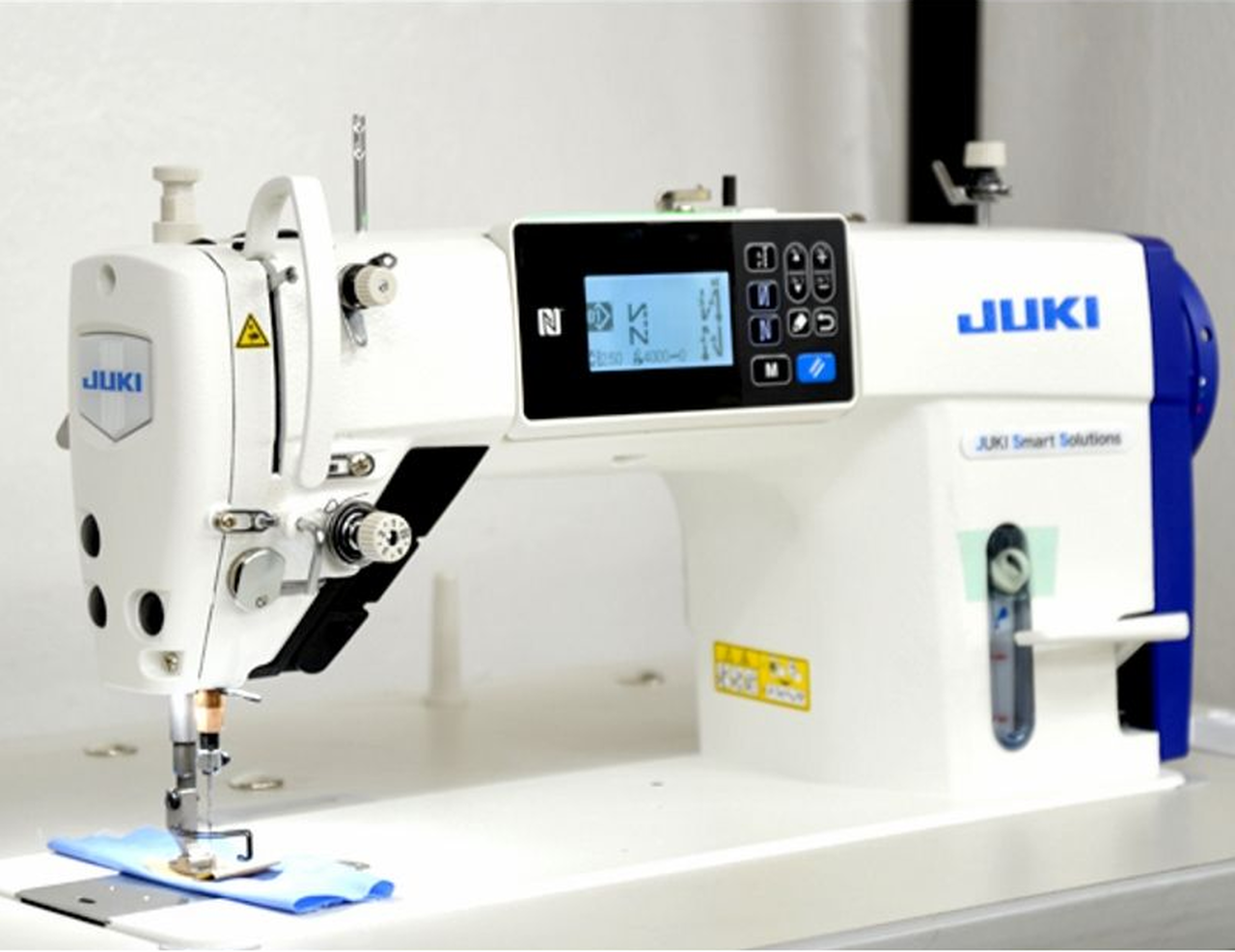

Juki DDL-9000-C SMS Digital Tension, Pressure, Foot Lift, Trimmers, BackTack, Stitch Length, Feed Height, Direct Drive, Control Box.
$2,245.00
The JUKI DDL-9000C-SMS is a FULL AUTOMATIC single needle lockstitch sewing machine most widely used for light to medium weight materials. Ideal for sewing shirts, pants, dresses, workwear, childrenswear and many other clothing articles made of cottons and knits.
Automated functions such as start and end back tacks, auto thread trimming and auto foot lift drastically improve speed, efficiency and production volume – while at the same time protecting the operator from unnecessary fatigue.
Description
Juki DDL-9000C Series Industrial Heavy Duty Sewing Machines with Table and Motor – DDL-9000C-SMS or DDL-9000C-FMS
JUKI has digitalized the drive mechanism of the sewing machine which determines the “seam” quality, JUKI launches the new “direct-drive, high-speed, lockstitch sewing system with automatic thread trimmer” DDL-9000CF.This is the newest flagship lockstitch machine. Digitalized vertically- and horizontally-driven feed mechanism allows easy adjustment of settings such as the feed locus only on the operation panel according to the material to be sewn.Thanks to the digitalization, Optimum adjustment values required to produce high-quality seams can be stored, on a material-by-material basis, in memory and can be reproduced wi th ease. For sewing plants which produce diversified products using diversified materials, this feature is quite helpful to achieve stable seam quality.
Specifications.
| MODEL | DDL-9000C-FDS | DDL-9000C-FMS | DDL-9000C-FSH | DDL-9000C-SMS | DDL-9000C-SSH |
|---|---|---|---|---|---|
| Type | Full Digital Type | Digital Type | |||
| Application | Medium-weight | Heavy-weight | Medium-weight | Heavy-weight | |
| Lubrication | Fully-dry head type | Semi-dry | Minute-quantity lubrication | Semi-dry | Minute-quantity lubrication |
| Max. sewing speed | 4,000sti/min | 5,000sti/min*1 | 4,500sti/min*2 | 5,000sti/min*1 | 4,500sti/min*2 |
| Max. stitch length | 5mm | ||||
| Needle*3 | DB×1・DB×5（#11） #9～#18（Nm65～110） | DB×1・DB×5（#21）#20～23（Nm125～160） | DB×1・DB×5（#11）#9～18（Nm65～110） | DB×1・DB×5（#21）#20～23（Nm125～160） | |
| Lift of the presser foot | By hand：5.5mm, By knee：15mm, Auto: 1st stage5.0mm(※0.1～8.5mm), 2nd stage8.5mm(※8.5mm～13.5mm) ※Adjustable on the operation panel |
||||
*1Stitch length of 4.00 mm or less: 5,000 sti/min; Stitch length of 4,05 – 5.00 mm: 4,000 sti/min
*2Stitch length of 4.00 or less: 4,500sti/min; Stitch length of 4.05 – 5.00mm: 4,000sti/min
*3Differs on a destination-by-destination basis
DDL-9000CF
Additional information
| Weight | 11.78 lbs |
|---|---|
| Dimensions | 23.57 × 29.83 × 30.24 in |
